Pinned straw:

Added 3 months ago

I haven't watch but presentations on this channel are technically orientated so I suspect it will be a good breakdown on the technicals of the technology etc..

https://www.youtube.com/watch?v=Rrs9pR1heYs


jcmleng
Added 3 months ago

Discl: Held IRL and in SM

@BkrDzn , many thanks for the link! I had a watch and excluding the banter in the 1st 5 mins, and some technical details in the last 10 or so mins at the back end, it was really good to have a non-investor presentation for a change! The presenter is a C79 Sales Manager from the C79 Vancouver office. He spoke to each slide slowly and clearly I thought.

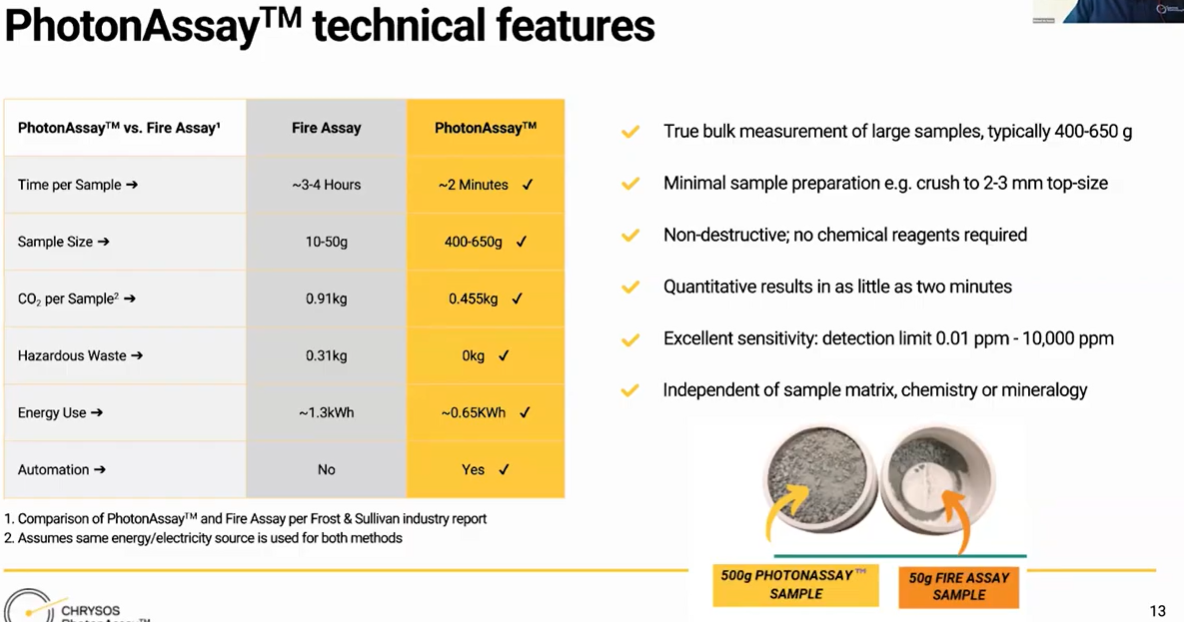

I took away some slides which I have not quite seen before, particular those that compare with FireAssay, and which reinforces my view that its adoption is only going to grow ...

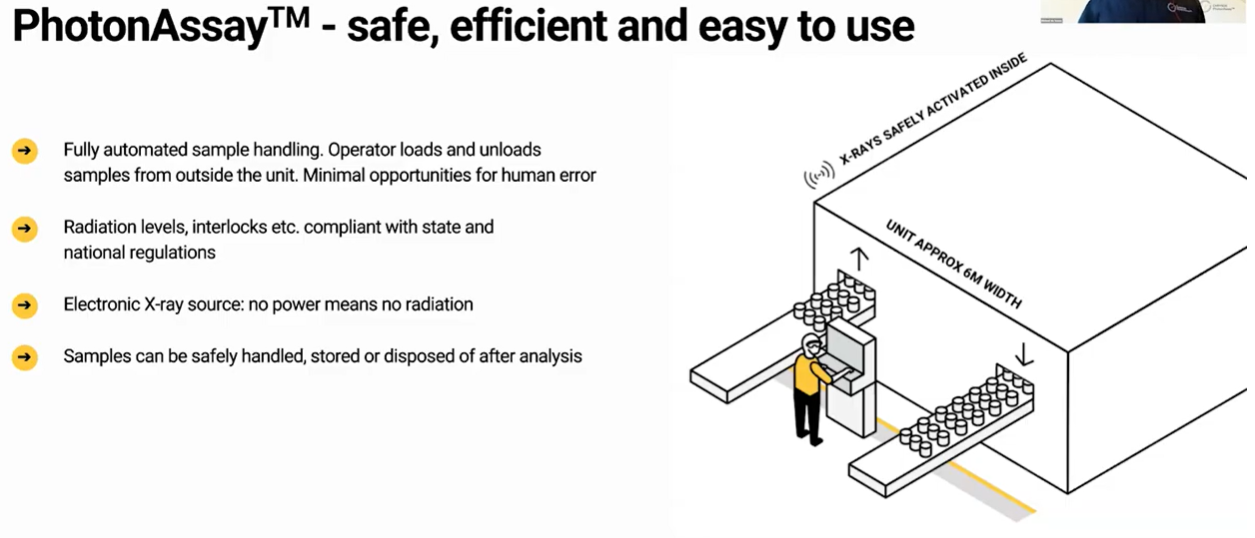

  • Size of unit - 3 containers stacked side-by-side

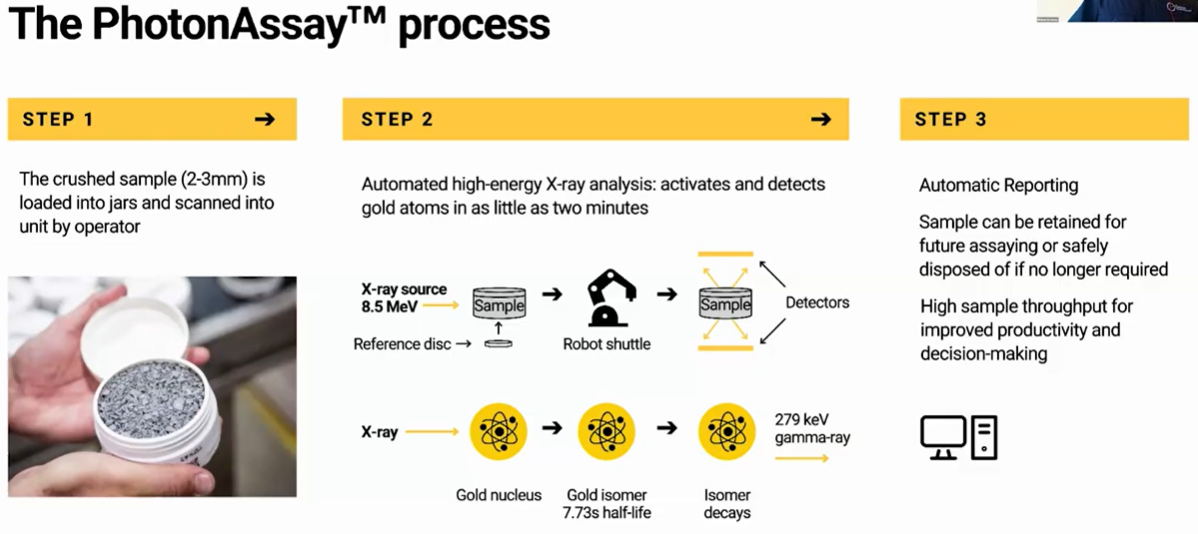

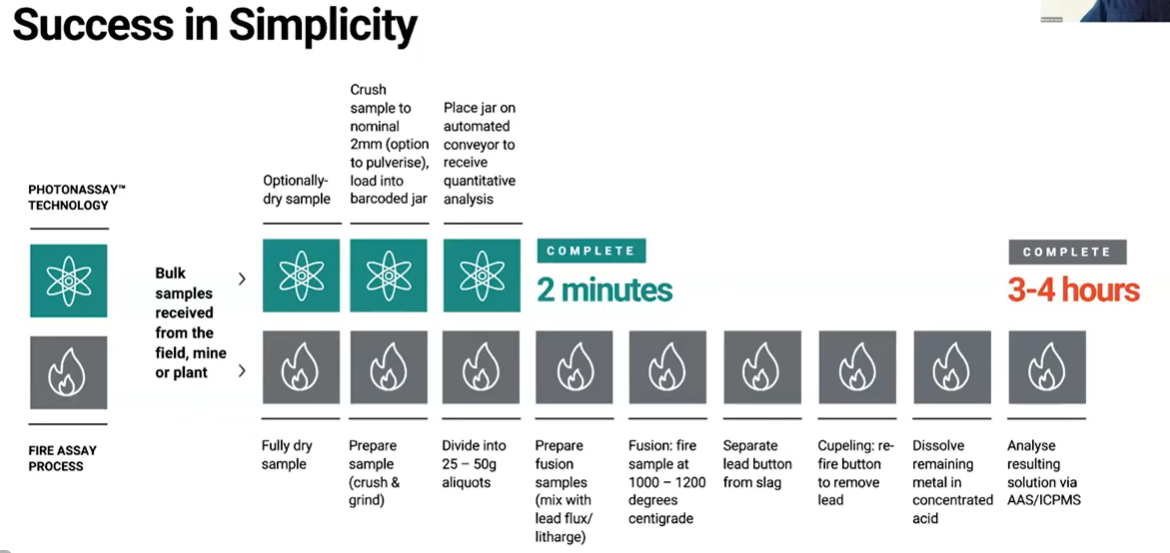

  • Larger sample size, more automated, reduce sampling process from 3-4 hours to 2 minutes - this slide compares the steps involved in PhotonAssay vs FireAssay - the efficiencies are stark!




  • Bigger sample size of the crushed material 500g vs 30g Fire Assay - data accuracy
  • No need to pulverize, crushing will do
  • No hazardous waste
  • Non-destructive, sample can be re-used/re-run



This has been mentioned many times in C79’s Investor Presentations, but it was good to hear/see it from a non-investment perspective

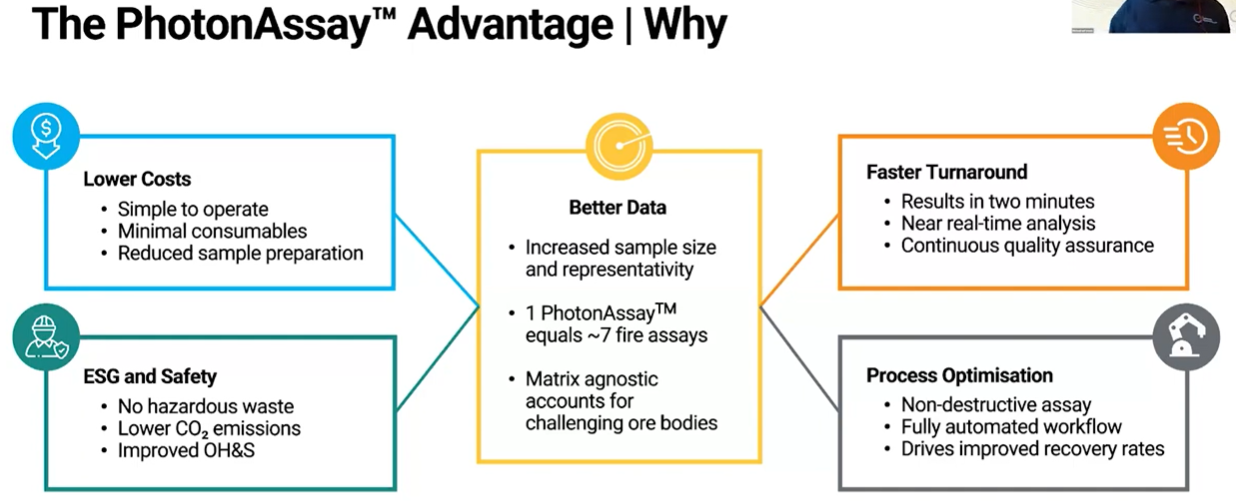

Reinforcement of the Why


15
